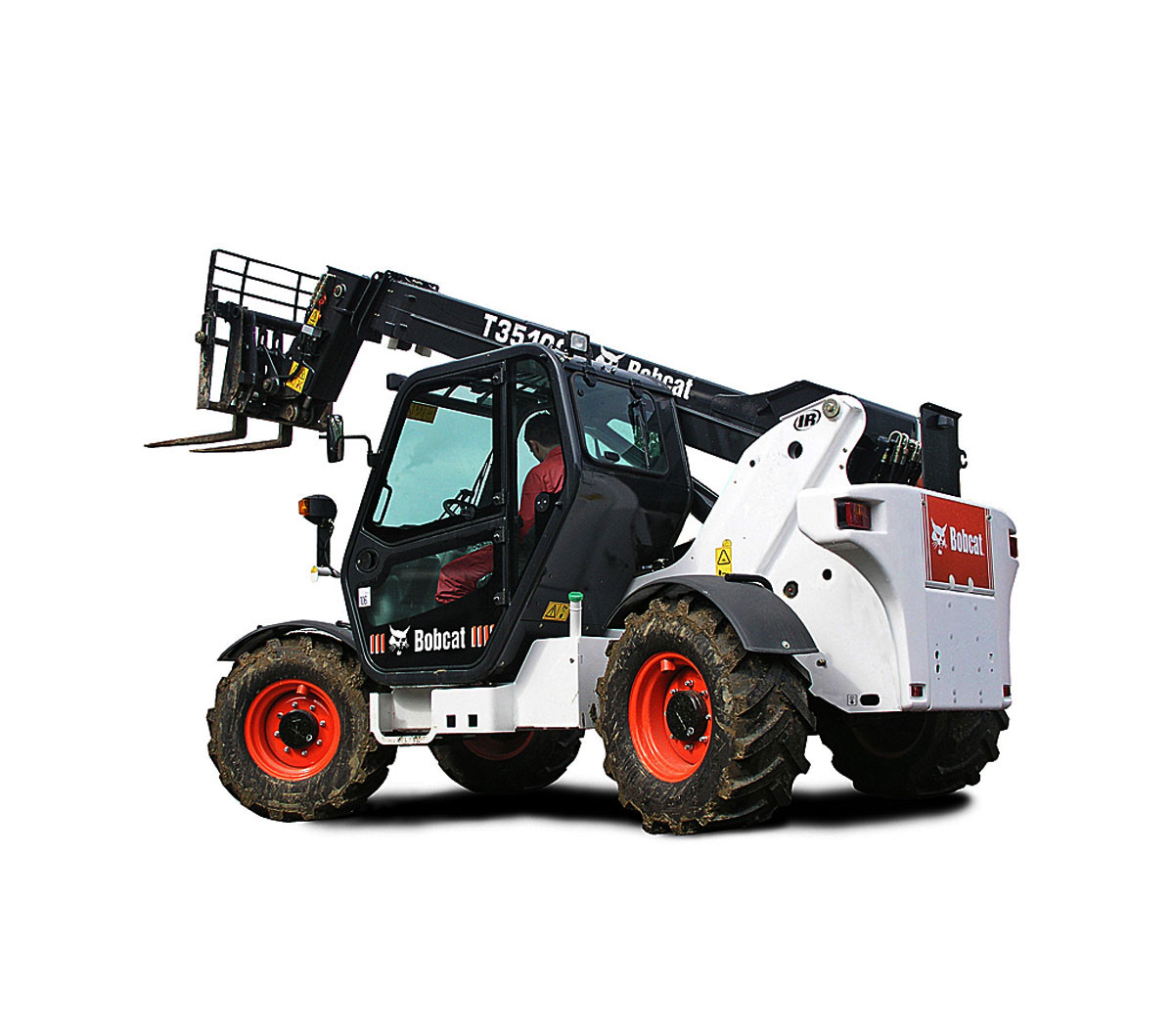

Bobcat T35100

Quick Specs

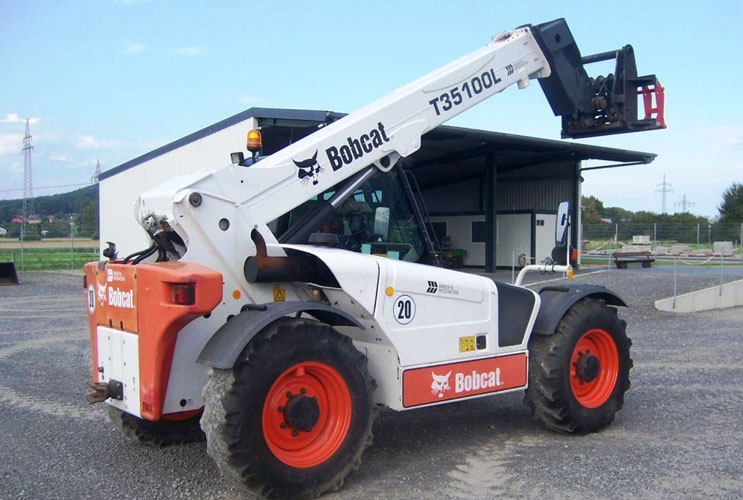

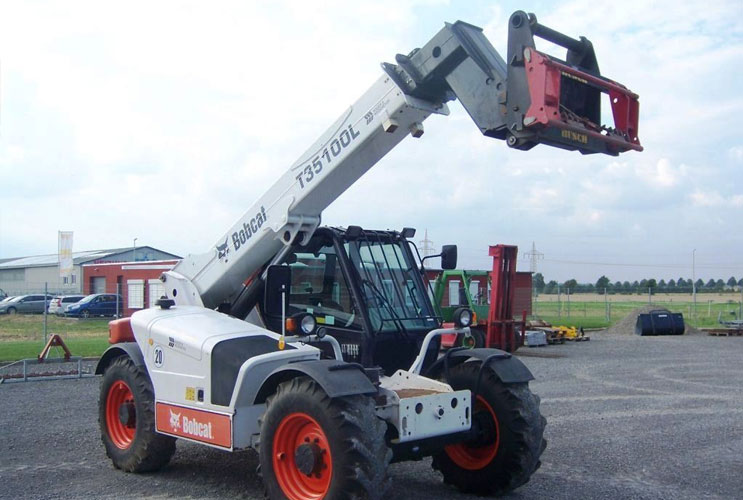

The T35100SL incorporates both stabilizers and the frame-levelling system while the T35100L features the frame-levelling system.

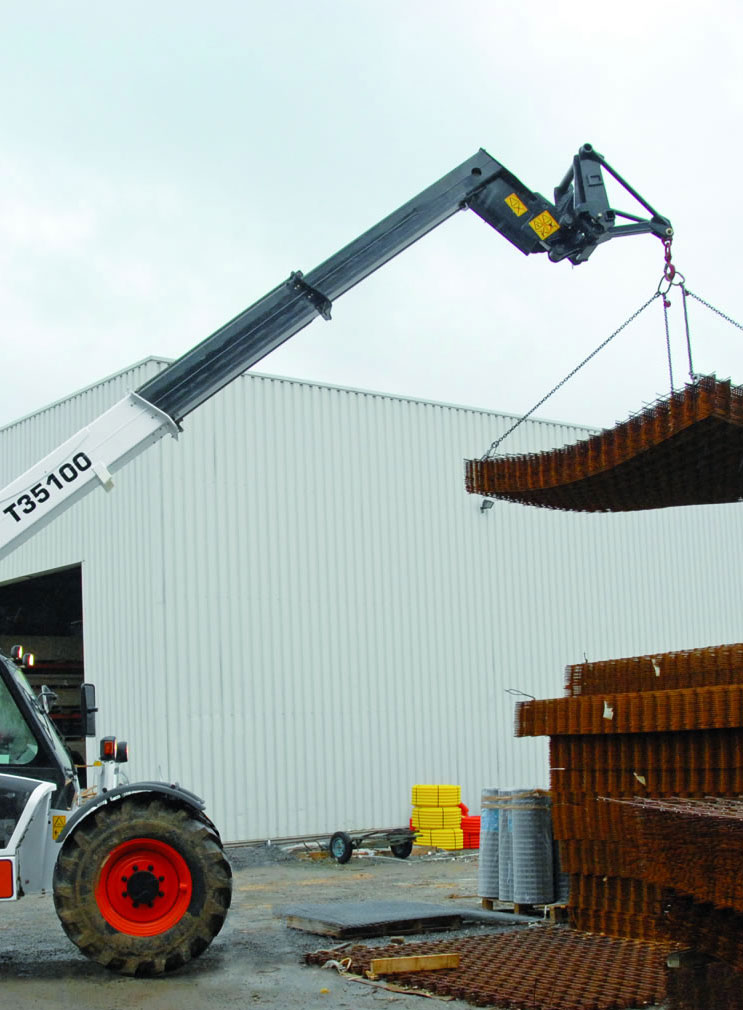

Stabilizers are available for applications that require increased stability when working at extended heights or reach. With its high reach, this rigid chassis model is ideal for loading and unloading lorries from the side.

The frame levelling system allows lateral tilt correction as well as a vertical positioning of the boom on rough terrain. For safe frame levelling at any boom angle, two frame-levelling speeds are available.

The Bobcat 10 m series will be greatly appreciated by operators and owners of small and medium sized construction companies. Both for its versatility, simplicity of use due to the hydrostatic transmission and the standard proportional joystick, as well as for operator safety ensured by the standard Aggravating Movements Arrester (AMA) system and lateral safety for models with a levelling device.

All the 10 m models are fitted with a TIER III engine and a made to measure engine casing, a comfortable cab and an advanced boom. All the hydraulic lines and telescoping cylinder are integrated in the arm to avoid damage in case an object would be dropped on the arm.

The hydrostatic transmission offers power, precision and smooth engagement for accurate control of the machine in any application.

The T35100’s range offers three steering modes for ease of handling: all-wheel steer for on-site handling, crab-steer for positioning loads from side-to-side in restricted areas and front-wheel steer for travel on roads.

The driving mode system enables you to choose the most appropriate driving method: direct drive when travel speed is required or soft drive for hydraulic power and torque.

Get even more with the tow device, electric auxiliary, rear hook, mirror, tractor tow device, tractor hook, stabilizer locking system (arm extended or arm raised to 25°), air prefilter, matriculation plate, trailer brake valve, rotating beacon, back-up alarm, protective grill for windshield, roof glace wiper, second auxiliary hydraulic line on boom, air conditioning, wheel wedge, transmission unlocking device, rear hydraulic auxiliary, working light on boom, fan inverter, set of blue lights for henhouses, cap fuel locking, boom stop, loudspeakers predisposal, option double speed fan motor, cold water starting, zinc painting, other color, Dunlop tires, pneumatic seat, hydraulic locking of accessories, tow hitch and rotating light available as factory option.
